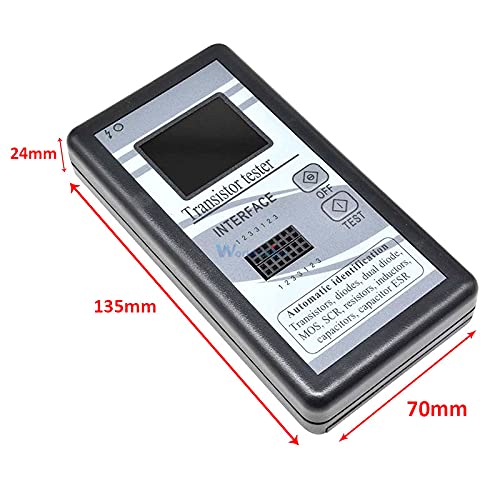

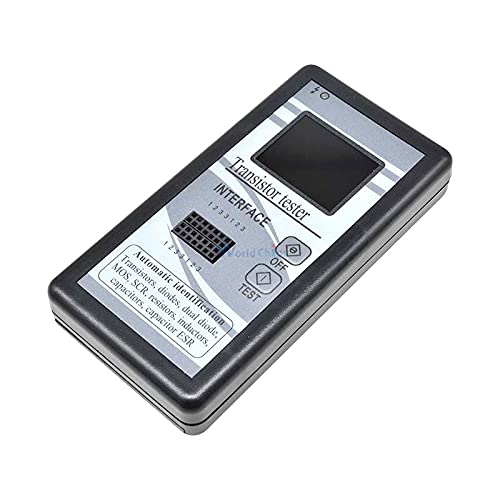

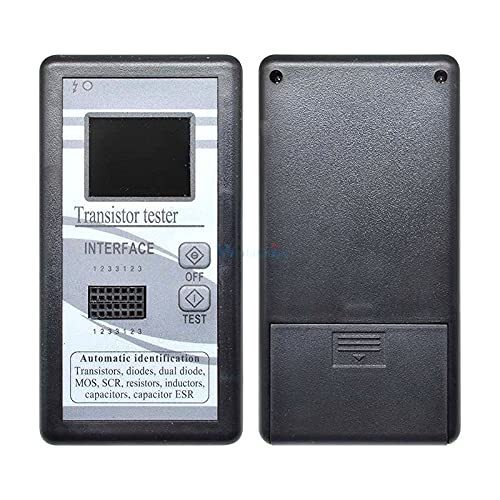

M328 1.8'' 160x128 LCD Digital Transistor Tester Diode Inductor Resistance Capacitance Tester LCR Meter Resistor Capacitor

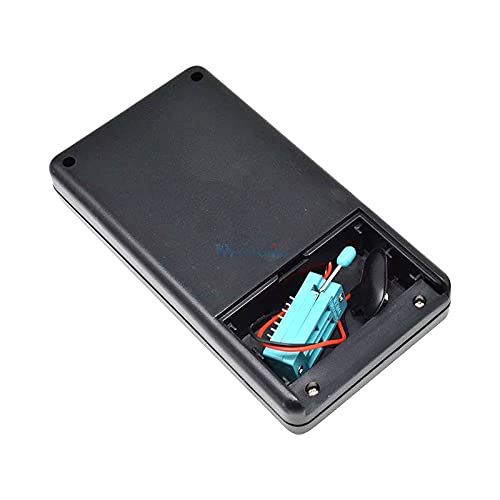

Multi-functional transistor tester for automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors or other devices. Easy and convenient to operate. Features: 128*160 TFT color display for easy readings, can display measured data and graphics. Powered by 9V battery(not included). All components are protected by a plastic case, convenient to carry. Automatically detect NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors or other devices. Automatically test the pins of a component and display on the LCD. Measure the gate threshold voltage and gate capacitance of the MOSFET. Measure bipolar transistor current amplification factor and base-emitter threshold voltage. Two-button operation, automatic shutdown to avoid unnecessary waste. Short detection time: only 2 seconds. It is normal to cost 1 minute for bulk capacitor detection. NOTE: Please make sure that capacitors are discharged before testing. Specifications: Case Color: Gray Display: 1.8" TFT Color Display Material: PCB + Plastic Shutdown Current: 20nA Resistor Test Range: 0.5Ω-50MΩ Inductor Test Range: 0.01mH-20H Capacitor Test Range: 25pF-100000uF Item Size: 13.5 * 7 * 2.2cm / 5.3 * 2.76 * 0.86in Item Weight: 99g / 3.5oz Package Size: Approx. 16 * 8 * 2.5cm / 6.3 * 3.15 * 0.98in Package Weight: 102g / 3.61oz Package List: 1 * Transistor Tester (Battery not included)
